Energinn Technology Solutions Inc.

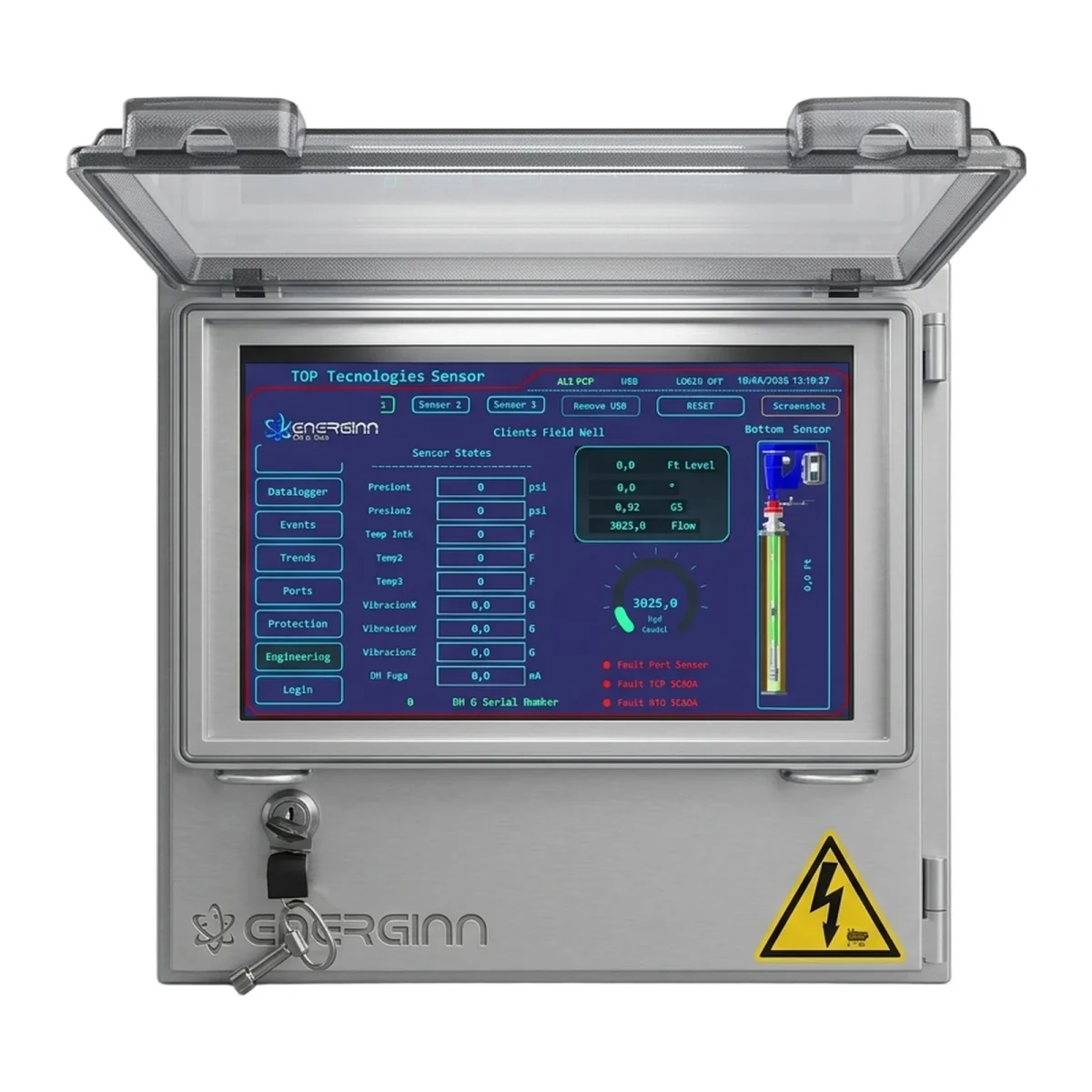

SmartPumper PID Controller
Selected variant: EN-ALC-00040
Made in China
The SmartPumper is Energinn's automatic RPM controller for artificial lift pumps. Its PID algorithm continuously corrects the error between measured dynamic pressure and the set point, regulating motor speed to ±0.2 Hz. It minimizes fluid level swings to keep gas in solution, and auto-tuning adapts to well conditions without constant manual intervention. Field proven in Suriname on 5 systems. Power 100 to 240 VAC or 12 to 24 VDC, 7 in full color touch screen, Modbus RTU over isolated RS-485 or RS-232 and Modbus TCP over Ethernet. Operating range -18 to 85 °C. Dimensions 13.7 x 11.8 x 9.4 in, weight 17.6 lb.
EN-ALC-00040
EN-ALC-00040
- Output
- Modbus RTU (RS-485 / RS-232), Modbus TCP Ethernet
- Power supply
- 100-240 VAC or 12-24 VDC
In stock · Lead time 20 days
Min 1 ea
Variant EN-ALC-00040
| Part number | EN-ALC-00040 |
|---|---|
| Output | Modbus RTU (RS-485 / RS-232), Modbus TCP Ethernet |
| Power supply | 100-240 VAC or 12-24 VDC |
| Unit | ea |
| Min | 1 ea |
| Stock | In stock |
| Lead time | 20 days |
| Country of origin | Colombia |
| Weight per ea | 17.6 lb |
| Dimensions (L × W × H) | 9.4 × 11.8 × 13.7 in |
No documents published for this product yet.
| Part number | Warehouse | On the shelf |
|---|---|---|
| EN-ALC-00040 | Factory | In stock |
